Clear communication is really important in the busy environment of a construction site. Good signage helps keep everyone safe while ensuring smooth operations. Built Environs project site signage templates allow for the consistent application of the Built Environs brand on all of our sites. The templates are used to clearly identify our sites, designate and direct people to different areas within a site, and makes people aware of any hazards present.

The proportional guidelines have been developed to ensure that signage has clarity, impact and can be easily read from a distance. Please use them in conjunction with the rest of the guidelines to ensure correct use of the Built Environs logo.

If you need a different sign, or a situation arises that is not covered in these guidelines please contact: marketingandcommunications@mcdgroup.com

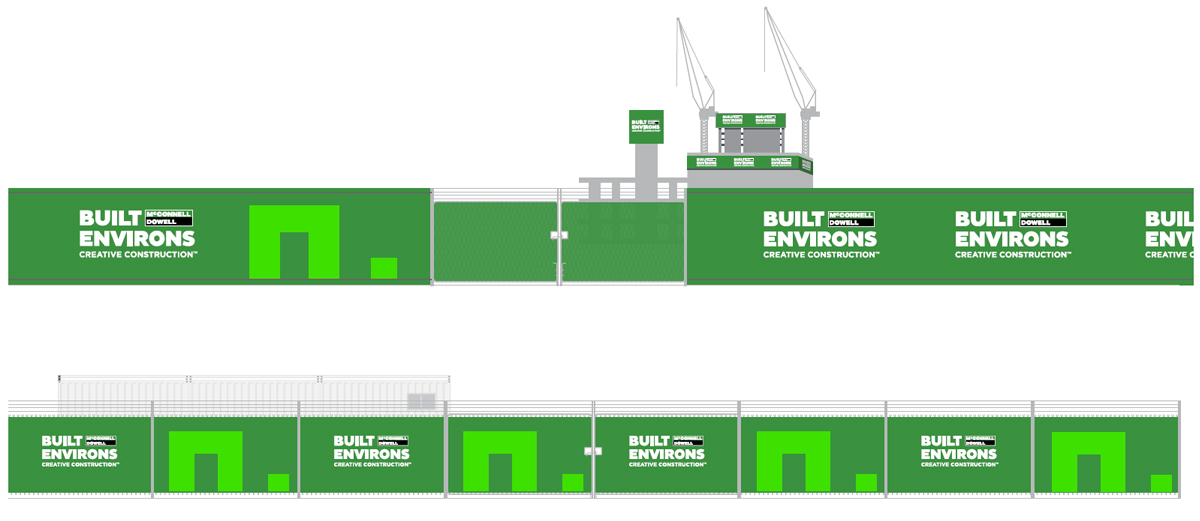

Site Fencing

Built Environs branding should be clearly visible on public facing fences wherever practical. For both opaque and transparent hoardings use our green colour as the base for maximum impact, with repeating combinations of the Built Environs logo and cityscape applied. Ensure correct materials are used to suit your site’s specifications.

Wooden hoarding painted hero green with only the Built Environs logo

Shade cloth with logo and cityscape combination. Ensure permeability is at least 70%, to mitigate wind factor.

Principal Contractor - Site signs

Principal contractor sign with PPE
Principal contractor sign with PPE and Map
Principal contractor sign Map only
Principal contractor sign with emergency details

Principal Contractor - Door signs

Artwork available in 1 size: 600 x 900mm

Works in Progress

Artwork only available in 1 size: 1200 x 600mm

Permit to Work sign

Artwork only available in 1 size: 3000 x 840mm

HSEQ Site Posters

All of the below posters should be displayed on site, on HSEQ noticeboards.

And are available to download directly from REF- click on the link below each poster.

Safety Golden Rules (updated for 2024)

Dimensions: (A0) 841 x 1189mm

Commercial Golden Rules

Dimensions: (A4) 210 x 297 mm

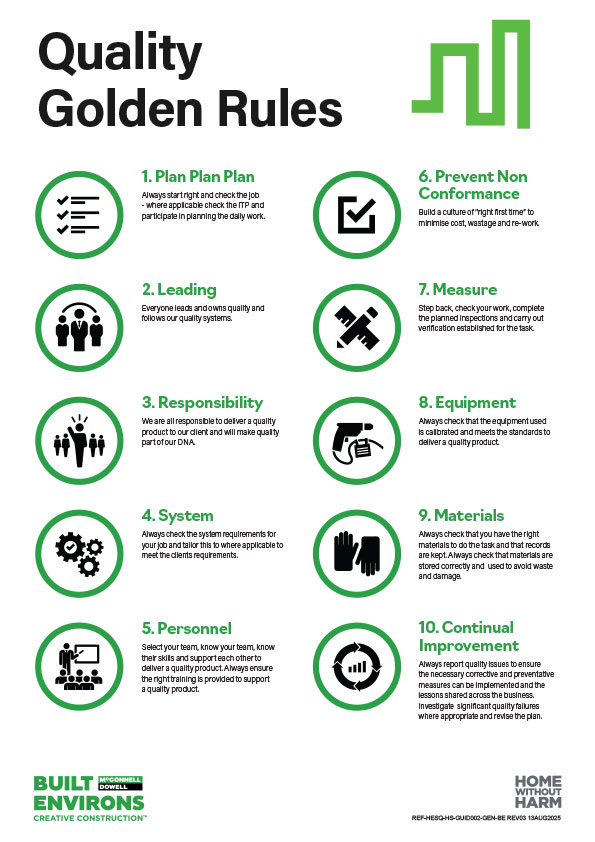

Quality Golden Rules

Dimensions: (A4) 210 x 297 mm

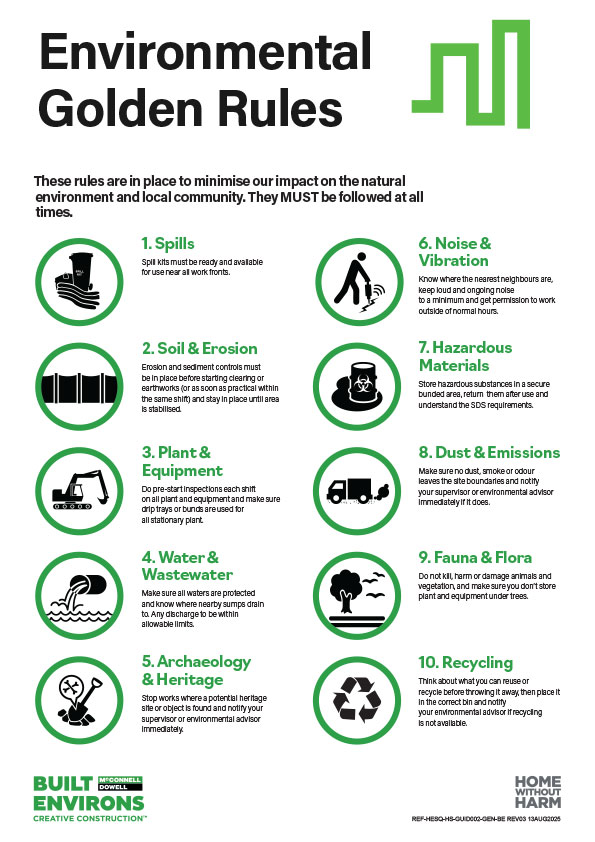

Environmental Green Rules

Dimensions: (A4) 210 x 297 mm

Check for Change

Dimensions: (A4) 210 x 297 mm

Working Safely in the Heat

Dimensions: (A4) 210 x 297 mm

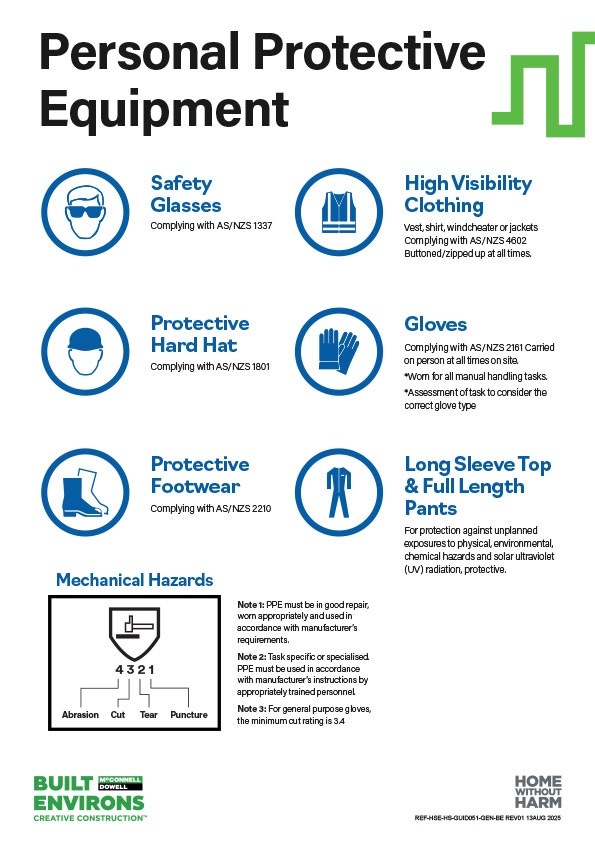

PPE

Dimensions: (A4) 210 x 297 mm

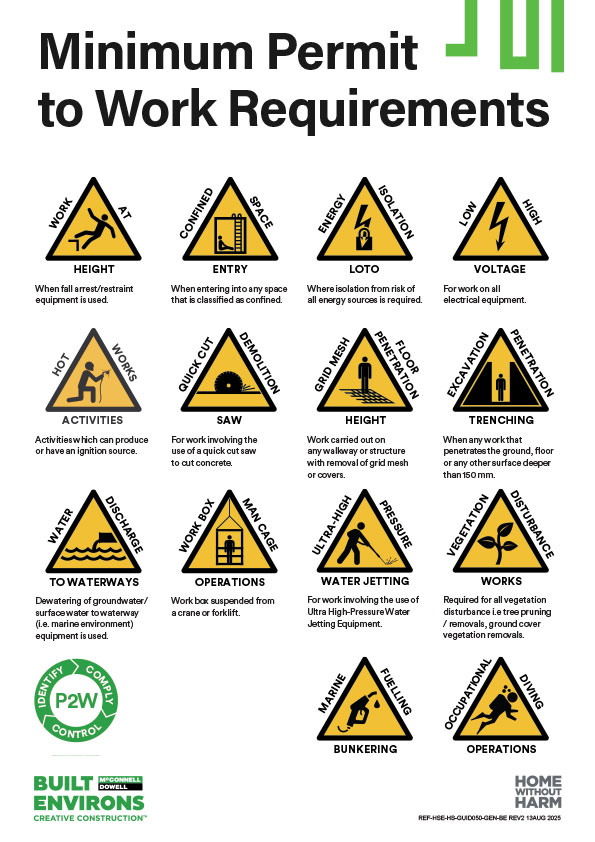

Permit to work

Dimensions: (A4) 210 x 297 mm

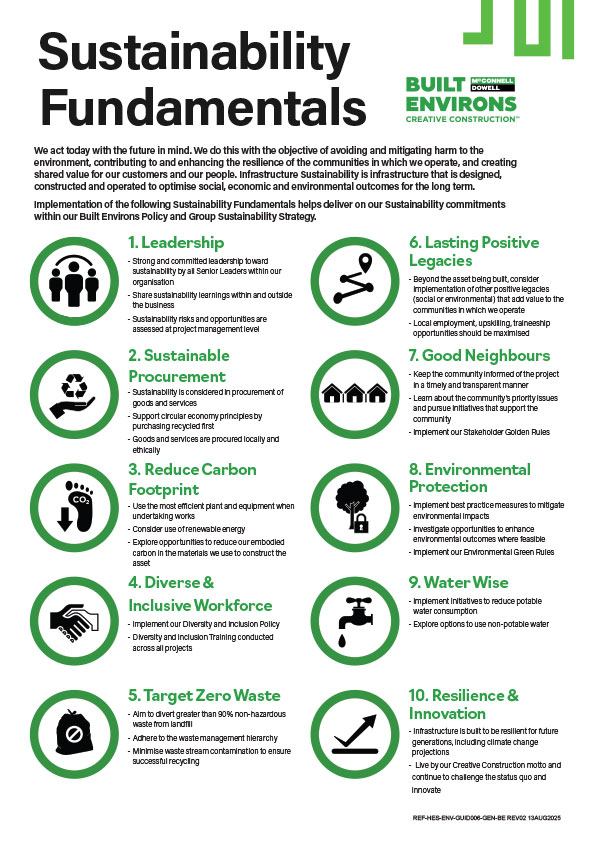

Sustainability Fundamentals

Dimensions: (A4) 210 x 297 mm

Stakeholder Golden Rules

Dimensions: (A4) 210 x 297 mm

Access and Directional Signs

Gate Number

Dimensions: 600 x 900 mm

Site Office

Dimensions: 600 x 450 mm

Toilet

Dimensions: 600 x 450 mm

Blank Site sign

Wording on the below sign is designed to be edited and arrow graphic rotated or removed to create site-specific instructions.

Site Signs Template
Dimensions: 435 x 310 mm

Example of edited layouts

Values Posters

Values posters should be displayed prominently on all projects and sites.

These comprise of a set of 6 posters, preferably displayed at A2 size, but A3 size also available.

Download

Download the complete Built Environs signage & poster suite containing all the above listed files.

Note: HSE and Quality posters are not included in this zip file – they can only be downloaded through REF directly.

Site signs will need to be edited to reflect the project/site they pertain to. Use either Nitro or Adobe programs to do this.

To add your site map in Nitro, go to the ‘Review’ tab and then select ‘insert image’

 Any issues email: marketingandcommunciations@mcdgroup.com
